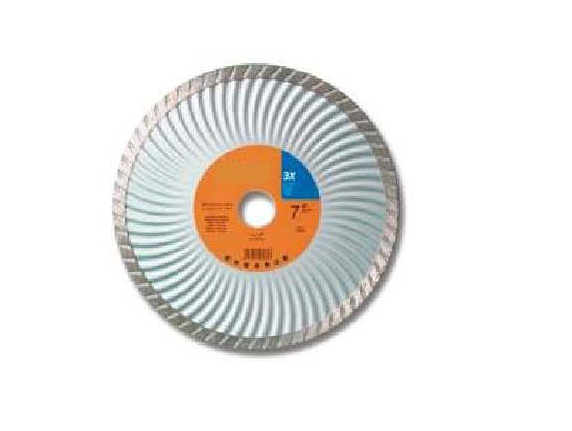

Diamond Blade Turbo Wave Type
Diamond Blade Turbo Wave Type
FEATURES
Turbo wave rim
Advanced high density bond
High diamond content
High strength center
BENEFITS
Fast cutting
Long life
High efficiency
Wet or dry cutting
APPLICATIONS
Tile
Porcelain
Marble
Natural and artificial stone
SINTERED DIAMOND WHEEL WITH TURBO WAVE SAW BLADE
Item
Number
Outer Diameter
Hole Diameter
Core Thlckness
Segment Dimension
Inch
Metric(mm)
Thickness
Height
671301
4"
105
16/20/22.3
1.2
1.7
7
671302
4.5”
115
20/22.3
1.4
1.8
7
671303
5"
125
20/22.3
1.4
2.0
7
671304
6"
150
20/22.3
1.4
2.1
7
671305
7”
180
22.23/25.4
1.6
2.2
7
671306
8”
200
22.23/25.4
1.8
2.4
7
671307
9”
230
22.23/25.4
1.8
2.4
7
671308
10"
250
22.23/25.4
2.2
2.6
7
671309
12"
300
22.23/25.4
2.2
3.6
8
671310
14"
350
22.23/25.4
2.2
3.6
8
